BB-103-01
Bristle Blaster® Belt, Stainless Steel, Red, 11 mm
The 11 mm stainless-steel Bristle Blaster® belt — 0.7 mm wire with angled, sharpened tips, built ...
Interactive Tool
Belt Selector Tool
Find the right MontiPower belt for your surface preparation job in 3 steps, cleaning standard, substrate material, and profile grade.
Find the Right Belt for Your Job
3-step interactive selector — cleaning standard, substrate material, and profile grade.
MontiPower's belt system covers every combination of cleaning standard (ISO 8501-1, SSPC / AMPP), substrate material and surface profile depth. The selector maps your specification to the correct belt article number and recommends the right tool — Bristle Blaster® or MBX®, for the job.
- Compliant with ISO 8501-1 & SSPC / AMPP
- Recommends tool & exact belt article number
- Belt viability chart and printable PDF report
- Shareable deep-link to any selection
Belt Quick Reference
BB-033 / BB-034
Bristle Blaster® Red — Carbon Steel, 23 mm / 11 mm
BB-102 / BB-103
Bristle Blaster® Red — Stainless Steel / Aluminium, 23 mm / 11 mm
MB-001-10 / MB-020-10
MBX® Black Coarse — Coating removal, 23 mm / 11 mm
MB-009-10 / MB-021-10
MBX® Ochre Medium — Derusting, 23 mm / 11 mm
MB-005-10 / MB-028-10
MBX® Green Fine — Cleaning / prep, 23 mm / 11 mm
MB-011-10 / MB-030-10
MBX® Blue — Stainless Steel / Aluminium, 23 mm / 11 mm
Belt Selector
SSPC / AMPP
ISO 8501-1
SSPC-SP11
Step 1 of 3
Select Cleaning Standard
Select the surface cleanliness standard required by your specification. ISO 8501-1 (Sa / St) and SSPC / AMPP standards are all supported, they map to the same belt selection.
ISO 8501-1. Sa
| Sa 1 | Light blast | SSPC-SP7 |
| Sa 2 | Commercial blast | SSPC-SP6 |
| Sa2 ½ | Near white metal | SSPC-SP10 |
| Sa 3 | White metal | SSPC-SP5 |
ISO 8501-1. St (Hand / Power Tool) & SSPC-SP11
| St 2 | Hand tool clean | SSPC-SP2 |
| St 3 | Power tool clean | SSPC-SP3 |
| SP11 | Power tool to bare metal + profile | Bristle Blasting territory |
SSPC
| SP5 | White Metal | Sa 3 |
| SP10 | Near White | Sa2 ½ |
| SP6 | Commercial | Sa 2 |
| SP11 | Power Tool + Profile | Ma class |
Profile Grades
| 1.5 mil | 38–50 µm | Grade 1–2 |
| 2 mil | 50–75 µm | Grade 2–3 |
| 3 mil | 75–100 µm | Grade 3–4 |
| >4 mil | >100 µm | Grade 4–5 |
ISO 8501-1 — Sa Standards
Sa2Commercial BlastScale, rust and paint thoroughly removedSSPC-SP6 · NACE #3
Sa2 ½Near White MetalMax 5% light staining remainingSSPC-SP10 · NACE #2
Sa3White Metal100% clean, uniform metallic sheenSSPC-SP5 · NACE #1
St / Hand & Power Tool
St 2Hand Tool CleanSSPC-SP2
St 3Power Tool CleanSSPC-SP3
SSPC Standards
SP5White Metal≡ Sa 3
SP10Near White≡ Sa2 ½
SP6Commercial≡ Sa 2
SP11Power Tool + ProfileMa class
SP7Brush-Off≡ Sa 1
SP3Power Tool≡ St 3
SP2Hand Tool≡ St 2
Step 2 of 3
Select Substrate Material
Substrate determines the belt chemistry. Stainless steel requires dedicated stainless belts and a separate accelerator bar.
Carbon SteelStructural steel, pipelines, tanks
Stainless SteelFood grade, marine, process equipment
AluminiumAerospace, automotive, non-ferrous
Sheet MetalThin gauge steel panels, automotive body
ConcreteFloors, walls, civil structures
Stainless Steel selected. Use stainless-grade belts (blue label) and the dedicated Stainless Accelerator Bar. Never use a carbon steel bar on stainless work.
Step 3 of 3
Select Surface Profile Grade
Select the required anchor profile depth for your coating system.
Anchor profile · SSPC-SP11. Profile grades measured by surface roughness comparator, replica tape (ASTM D4417-C) or gauge (Ra/Rz). Grades shown in µm and mil values.
Genuine Consumables
Order Belts from Malaysian Stock
Every belt below ships from Shah Alam. Found your article number with the selector? Add it straight to your quote list.
BB-102-01

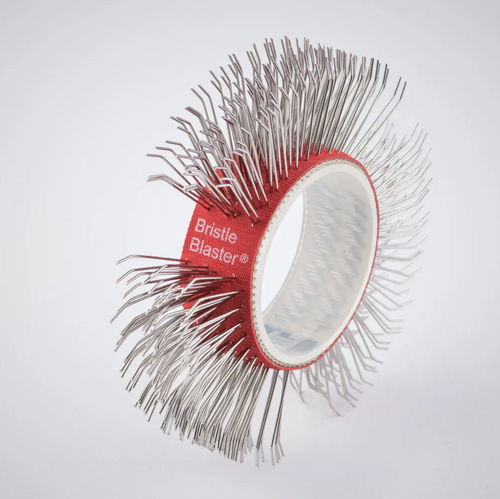

Bristle Blaster® Belt, Stainless Steel, Red, 23 mm
The 23 mm stainless-steel Bristle Blaster® belt — 0.7 mm wire with angled, sharpened tips. Suitab...
Bristle Blaster® Belt, Stainless Steel, Red, 23 mm (Box of 10)
The 23 mm stainless-steel Bristle Blaster® belt — 0.7 mm wire with angled, sharpened tips. Suitab...
BB-034-01
Bristle Blaster® Belt, Steel, Red, 11 mm
The 11 mm carbon-steel Bristle Blaster® belt — 0.7 mm wire with angled, sharpened tips, designed ...
BB-033-01
Bristle Blaster® Belt, Steel, Red, 23 mm
The 23 mm carbon-steel Bristle Blaster® belt — 0.7 mm wire with angled, sharpened tips.Built on a...
37001
High-Performance Toothed Drive Belt for MBX®/BB Electric or Cordless
The replacement gearbox drive belt that keeps your MBX® and Bristle Blaster® electric or cordless...
MB-030
MBX® Brush, Stainless Steel, Coarse, Blue, 11 mm
Flexible MONTI MBX® stainless-steel brush belts, 11 mm, for MBX® machines (electric or pneumatic)...
MB-011
MBX® Brush, Stainless Steel, Coarse, Blue, 23 mm (Box of 10)
Flexible MONTI MBX® stainless-steel brush belts, 23 mm, for MBX® machines (electric or pneumatic)...
MB-031
MBX® Brush, Stainless Steel, Fine, Blue, 11 mm
Flexible MONTI MBX® stainless-steel brush belts, 11 mm, for MBX® machines (electric or pneumatic)...
MB-007
MBX® Brush, Stainless Steel, Fine, Blue, 23 mm
Flexible MONTI MBX® stainless-steel brush belts, 23 mm, for MBX® machines (electric or pneumatic)...
MB-020
MBX® Brush, Steel, Coarse, Black, 11 mm
Flexible MONTI MBX® carbon-steel brush belts, 11 mm, for MBX® machines (electric or pneumatic). A...
MB-001
MBX® Brush, Steel, Coarse, Black, 23 mm
Flexible MONTI MBX® carbon-steel brush belts, 23 mm, for MBX® machines (electric or pneumatic). A...
MB-028
MBX® Brush, Steel, Fine, Green, 11 mm
Flexible MONTI MBX® carbon-steel brush belts, 11 mm, for MBX® machines (electric or pneumatic). A...
MB-005
MBX® Brush, Steel, Fine, Green, 23 mm
Flexible MONTI MBX® carbon-steel brush belts, 23 mm, for MBX® machines (electric or pneumatic). A...
Three Simple Steps
How It Works
The result: a recommended tool, belt article numbers, a viability chart, and a printable PDF report.
1 · Cleaning Standard
Pick the specification you're working to — ISO 8501-1 (Sa / St) or SSPC / AMPP. They map to the same belt selection.
2 · Substrate Material
Carbon steel, stainless steel or aluminium, steel belts for carbon steel, stainless belts for everything else. Never mix them.
3 · Profile Grade
Choose the anchor-profile grade your coating system needs; the selector returns tool + belt article numbers instantly.
Need Help Choosing?
Talk to Our Technical Team
Not sure which belt or tool suits your application? Our team can review your specification and recommend the right solution for your job.
